Транзистор PN3638

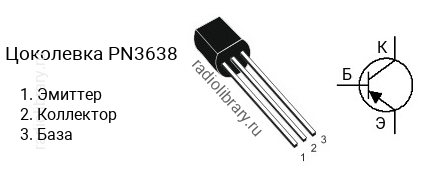

Цоколевка транзистора PN3638

Цоколевка транзистора PN3638

Характеристики транзистора PN3638

  • Структура - p-n-p
  • Напряжение коллектор-эмиттер, не более: -25 В
  • Напряжение коллектор-база, не более: -25 В
  • Напряжение эмиттер-база, не более: -4 V
  • Ток коллектора, не более: -0.5 А
  • Рассеиваемая мощность коллектора, не более: 0.625 Вт
  • Коэффициент усиления транзистора по току (hfe): от 30
  • Корпус: TO-92

Аналоги

Транзистор PN3638 можно заменить на 2N3702, 2N3703, 2N5401C, 2SA1013, 2SA1013O, 2SA1013R, 2SA1020, 2SA1020O, 2SA1020U, 2SA1270, 2SA1270-O, 2SA1270-Y, 2SA1271, 2SA1271-O, 2SA1271-Y, 2SA1273, 2SA1273-O, 2SA1273-Y, 2SA1275, 2SA1275-O, 2SA1275-R, 2SA1275-Y, 2SA1283, 2SA1283-C, 2SA1283-D, 2SA1283-E, 2SA1284, 2SA1284-C, 2SA1284-D, 2SA1284-E, 2SA1287, 2SA1287-G, 2SA1315, 2SA1315-O, 2SA1315-Y, 2SA1319, 2SA1319-R, 2SA1319-S, 2SA1319-T, 2SA1382, 2SA1533, 2SA1533-Q, 2SA1533-R, 2SA1534, 2SA1534-Q, 2SA1534-R, 2SA1534-S, 2SA1534A, 2SA1534A-Q, 2SA1534A-R, 2SA1534A-S, 2SA1619, 2SA1619-Q, 2SA1619-R, 2SA1619-S, 2SA1619A, 2SA1619A-Q, 2SA1619A-R, 2SA1619A-S, 2SA1625, 2SA1625-K, 2SA1625-L, 2SA1625-M, 2SA1680, 2SA1761, 2SA1972, 2SA200, 2SA200-O, 2SA200-Y, 2SA562TM, 2SA562TM-O, 2SA562TM-Y, 2SA683, 2SA683-Q, 2SA683-R, 2SA683-S, 2SA684, 2SA684-Q, 2SA684-R, 2SA684-S, 2SA719, 2SA719-Q, 2SA719-R, 2SA719-S, 2SA720, 2SA720-Q, 2SA720-R, 2SA720-S, 2SA777, 2SA777-Q, 2SA777-R, 2SA928A, 2SA928A-O, 2SA928A-Y, 2SA935, 2SA935-P, 2SA935-Q, 2SA935-R, 2SA950, 2SA950-O, 2SA950-Y, 2SA952, 2SA952-K, 2SA952-L, 2SA952-M, 2SA965, 2SA965-O, 2SA965-Y, 2SA966, 2SA966-O, 2SA966-Y, 2SA984, 2SA984-D, 2SA984-E, 2SA984-F, 2SA984K, 2SA984K-D, 2SA984K-E, 2SA984K-F, 2SA993, 2SA993B, 2SA993C, 2SA993D, 2SB1116, 2SB1116-K, 2SB1116-L, 2SB1116-U, 2SB1116A, 2SB1116A-K, 2SB1116A-L, 2SB1116A-U, 2SB1116AK, 2SB1116AL, 2SB1116K, 2SB1116L, 2SB1116U, 2SB560, 2SB560-D, 2SB560-E, 2SB560-F, 2SB560-G, 2SB564, 2SB564K, 2SB564L, 2SB564M, 2SB621, 2SB621-Q, 2SB621-R, 2SB621-S, 2SB621A, 2SB621A-Q, 2SB621A-R, 2SB621A-S, 2SB647, 2SB647A, 2SB647AB, 2SB647AC, 2SB647B, 2SB647C, 2SB647D, 2SB740, 2SB740-B, 2SB740-C, 2SB764, 2SB764-D, 2SB764-E, 2SB764-F, 2SB892, 2SB892-R, 2SB892-S, 2SB892-T, 2SB892-U, 2SB985, 2SB985R, 2SB985S, 2SB985T, 2SB985U, 2SC1317, 2SC1317-Q, 2SC1317-R, 2SC1317-S, 2SC1318, 2SC1318-Q, 2SC1318-R, 2SC1318-S, BC636, BC638, BC640, BC876, BC878, BC880, KSA1013, KSA1013O, KSA1013R, KSA1013Y, KSA1281-Y, KSA1625, KSA1625-K, KSA1625-L, KSA1625-M, KSA708C, KSA708CO, KSA708CR, KSA708CY, KSA709C, KSA709CG, KSA709CO, KSA709CY, KSA916, KSA916O, KSA916Y, KSA928A, KSA928A-O, KSA928A-Y, KSA931, KSA931O, KSA931R, KSA931Y, KSB1116, KSB1116-G, KSB1116-L, KSB1116-Y, KSB1116A, KSB1116A-G, KSB1116A-Y, KSB1116S, KSB1116S-G, KSB1116S-L, KSB1116S-Y, KSB564AC, KSB564ACG, KSB564ACO, KSB564ACY, KSP2907AC, KSP8598C, KSP8599C, KTA1023, KTA1023-O, KTA1023-Y, KTA1270, KTA1270O, KTA1270Y, KTA1271, KTA1271O, KTA1271Y, KTA1272, KTA1272O, KTA1272Y, KTA1273, KTA1273O, KTA1273Y, KTA1275, KTA1275O, KTA1275R, KTA1275Y, KTA1277, KTA1277O, KTA1277Y, KTA1279, KTA1281, KTA1281O, KTA1281Y, KTA1282, KTA1282O, KTA1282Y, KTA1283, KTA1283GR, KTA1283O, KTA1283Y, KTA200, KTA200-O, KTA200-Y, KTA708, KTA708-O, KTA708-Y, KTB764, KTB764-GR, KTB764-O, KTB764-Y, MPS3638, MPS3638A, NTE193A, NTE383, PN3638A, PN3644, PN3645, STB1277, STB1277-O, STB1277-Y
