Транзистор 2SA1262

• Структура - p-n-p
• Напряжение коллектор-эмиттер, не более: -60 В
• Напряжение коллектор-база, не более: -60 В
• Напряжение эмиттер-база, не более: -6 V
• Ток коллектора, не более: -4 А
• Рассеиваемая мощность коллектора, не более: 30 Вт
• Коэффициент усиления транзистора по току (h_fe): от 40
• Граничная частота коэффициента передачи тока: 15 МГц

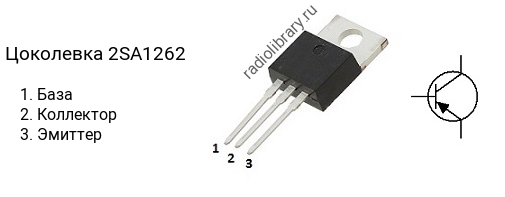

• Корпус: TO-220

Обозначение на корпусе транзистора 2SA1262 часто наносится без первой цифры и буквы, т.е. маркируется как "A1262".Комплементарной парой для 2SA1262 является транзистор 2SC3179 c n-p-n структурой.Транзистор 2SA1262 можно заменить на 2N6040, 2N6040G, 2N6041, 2N6041G, 2N6042, 2N6042G, 2N6667, 2N6667G, 2N6668, 2N6668G, 2SA1010, 2SA1010K, 2SA1010L, 2SA1010M, 2SA1077, 2SA1289, 2SA1289-Q, 2SA1289-R, 2SA1289-S, 2SA1290, 2SA1290-Q, 2SA1290-R, 2SA1290-S, 2SA1291, 2SA1291-Q, 2SA1291-R, 2SA1291-S, 2SA1293, 2SA1293-O, 2SA1293-Y, 2SA1308, 2SA1308-O, 2SA1308-Y, 2SA1329, 2SA1329-O, 2SA1329-Y, 2SA1452A, 2SA1452A-O, 2SA1452A-Y, 2SA1469, 2SA1469-Q, 2SA1469-R, 2SA1469-S, 2SA1470, 2SA1470-Q, 2SA1470-R, 2SA1470-S, 2SA1471, 2SA1471-Q, 2SA1471-R, 2SA1471-S, 2SA1488, 2SA1488A, 2SA1634, 2SA1634-D, 2SA1634-E, 2SA1634-F, 2SA1635, 2SA1635-D, 2SA1635-E, 2SA1635-F, 2SA1725, 2SA1725-O, 2SA1725-P, 2SA1725-Y, 2SA1726, 2SA1726-O, 2SA1726-P, 2SA1726-Y, 2SA489, 2SA489-O, 2SA489-R, 2SA489-Y, 2SA768, 2SA769, 2SA770, 2SA771, 2SB1016, 2SB1016-O, 2SB1016-R, 2SB1016-Y, 2SB1016A, 2SB1016A-O, 2SB1016A-Y, 2SB1017, 2SB1017-O, 2SB1017-R, 2SB1017-Y, 2SB1018, 2SB1018-O, 2SB1018-Y, 2SB1018A, 2SB1018A-O, 2SB1018A-Y, 2SB1020, 2SB1020A, 2SB1024, 2SB1090, 2SB1090-K, 2SB1090-L, 2SB1090-M, 2SB1097, 2SB1097-K, 2SB1097-L, 2SB1097-M, 2SB1367, 2SB1367-O, 2SB1367-R, 2SB1367-Y, 2SB1368, 2SB1368-O, 2SB1368-R, 2SB1368-Y, 2SB1626, 2SB1626-O, 2SB1626-P, 2SB1626-Y, 2SB566A, 2SB566A-B, 2SB566A-C, 2SB595, 2SB595-O, 2SB595-R, 2SB595-Y, 2SB596, 2SB596-O, 2SB596-R, 2SB596-Y, 2SB633, 2SB633-C, 2SB633-D, 2SB633-E, 2SB633-F, 2SB673, 2SB674, 2SB675, 2SB703, 2SB703-Q, 2SB703-R, 2SB703-S, 2SB703A, 2SB703A-Q, 2SB703A-R, 2SB703A-S, 2SB707, 2SB707-O, 2SB707-R, 2SB707-Y, 2SB708, 2SB708-O, 2SB708-R, 2SB708-Y, 2SB751, 2SB751-P, 2SB751-Q, 2SB751-R, 2SB751A, 2SB751A-P, 2SB751A-Q, 2SB751A-R, 2SB762, 2SB762-P, 2SB762-Q, 2SB762-R, 2SB762A, 2SB762A-P, 2SB762A-Q, 2SB762A-R, 2SB858, 2SB858-B, 2SB858-C, 2SB858-D, 2SB870, 2SB870-P, 2SB870-Q, 2SB870-R, 2SB942, 2SB942-P, 2SB942-Q, 2SB942-R, 2SB942A, 2SB942A-P, 2SB942A-Q, 2SB942A-R, 2SB944, 2SB944-P, 2SB944-Q, 2SB945, 2SB945-P, 2SB945-Q, 2SB945-R, 2SB946, 2SB946-P, 2SB946-Q, 2SB946-R, 2SB992, 2SB992-O, 2SB992-Y, 2SB995, 2SB995-O, 2SB995-R, 2SB995-Y, 2SB996, 2SB996-O, 2SB996-R, 2SB996-Y, 2SD743, 2SD743-Q, 2SD743-R, 2SD743-S, 2SD743A, 2SD743A-Q, 2SD743A-R, 2SD743A-S, BD536, BD536K, BD538, BD538K, BD540A, BD540B, BD540C, BD544A, BD544B, BD544C, BD546A, BD546B, BD546C, BD646, BD648, BD650, BD652, BD898, BD898A, BD900, BD900A, BD902, BD950, BD952, BD954, BD956, BDT60, BDT60A, BDT60B, BDT60C, BDT62, BDT62A, BDT62B, BDT62C, BDT64, BDT64A, BDT64B, BDT64C, BDT82, BDT82F, BDT84, BDT84F, BDT86, BDT86F, BDT88, BDT88F, BDW24A, BDW24B, BDW24C, BDW45, BDW46, BDW46G, BDW47, BDW47G, BDW48, BDW54A, BDW54B, BDW54C, BDW54D, BDW64A, BDW64B, BDW64C, BDW64D, BDW74A, BDW74B, BDW74C, BDW74D, BDW94A, BDW94B, BDW94C, BDW94CF, BDX34A, BDX34B, BDX34BG, BDX34C, BDX34CG, BDX34D, BDX54A, BDX54B, BDX54BG, BDX54C, BDX54CG, BDX54D, BDX54E, BDX54F, FJP1943, FJP1943O, FJP1943R, FJPF1943, FJPF1943O, FJPF1943R, KSA1010, KSA1010O, KSA1010R, KSA1010Y, KSB1017, KSB1017-O, KSB1017-R, KSB1017-Y, KSB1097, KSB1097-O, KSB1097-R, KSB1097-Y, KSB596, KSB596-O, KSB596-R, KSB596-Y, KSB707, KSB707-O, KSB707-R, KSB707-Y, KSB708, KSB708-O, KSB708-R, KSB708-Y, KTA1038, KTA1038-O, KTA1038-Y, KTA1049, KTA1049O, KTA1049Y, KTB1367, KTB1367O, KTB1367R, KTB1367Y, KTB1368, KTB1368O, KTB1368R, KTB1368Y, MJE15029, MJE15029G, MJE15031, MJE15031G, MJE15033, MJE15033G, MJE15035, MJE15035G, MJE700T, MJE701T, MJE702T, MJE703T, MJF127, MJF127G, MJF15031, MJF15031G, MJF6668, MJF6668G, NTE153, TIP105, TIP105G, TIP106, TIP106G, TIP107, TIP107G, TIP125, TIP125G, TIP126, TIP126G, TIP127, TIP127G, TIP135, TIP135G, TIP136, TIP136G, TIP137, TIP137G, TIP147T, TTB1020B, TTB1452B
